Flagship Rotary — Advanced Automation
Screenotex's most sophisticated rotary screen printing machine — servo-driven blanket and individual servo-driven heads with planetary gearboxes, delivering unmatched registration accuracy and high production capacity at up to 80 m/min. Configurable with magnetic or pneumatic squeegee systems for the highest design complexity and print quality demands.

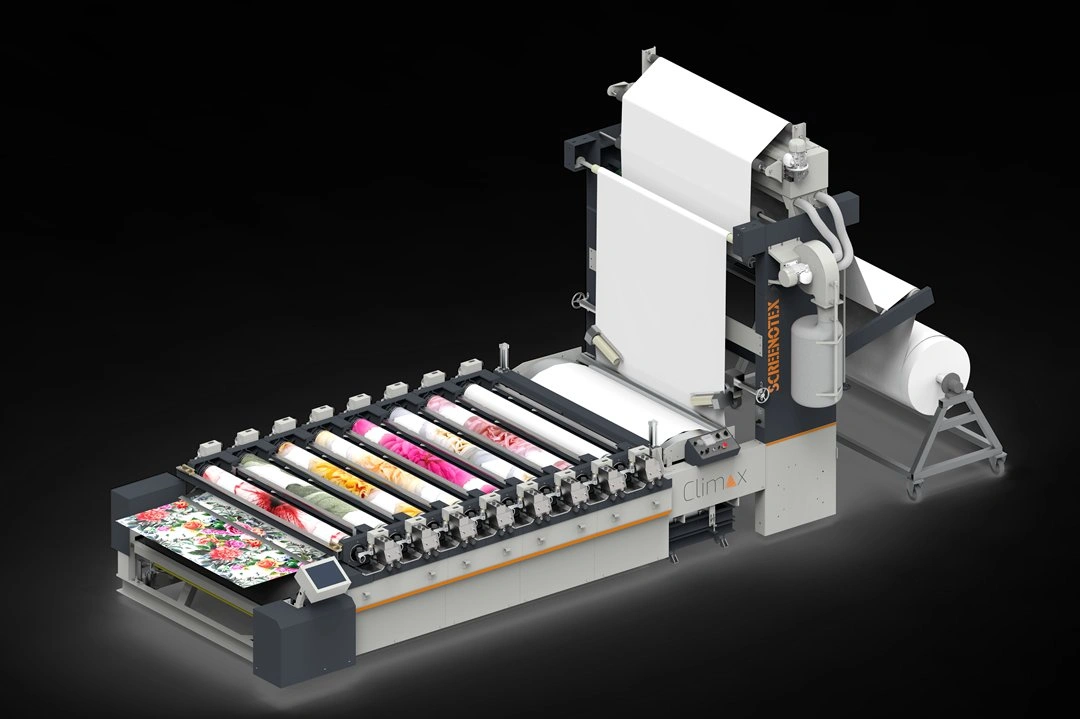

The Climax is Screenotex's most advanced rotary screen printing machine — individual servo-driven heads with planetary gearboxes, servo-driven blanket, and a choice of squeegee systems built for the highest demands of design complexity, production speed, and print quality.
A dedicated servo motor drives the printing blanket with precision speed and position control — maintaining exact fabric advance synchronised to every rotary head throughout the full production run at 80 m/min.
Each rotary head is driven by its own dedicated servo motor through a precision planetary gearbox — providing independent speed control and zero-backlash synchronisation between every head. The critical technology that delivers unmatched registration accuracy on complex multi-colour designs.
The Climax can be configured with 24 rotary heads or higher — enabling design complexity that would require multiple passes on lesser machines. Specify the exact head count for your design repeat and production requirements.
Choose between two distinct squeegee printing systems — magnetic for maximum ink penetration and saturation, or pneumatic blade for maximum sharpness and fine line definition — matching the system to your specific design and fabric requirements.
Pneumatically operated colour feeding pumps deliver precise, consistent ink supply to each rotary head — maintaining exact ink volume and pressure regardless of production speed, for even colour saturation across the full print width.
A fabric brushing and cleaning unit is included as standard — removing dust, lint, and loose fibres from the fabric surface before it enters the print zone, protecting the rotary screens from clogging and ensuring clean, consistent print quality at full production speed.
Available in four repeat sizes — 640, 820, 914, and 1018 mm — to match your design pattern repeat exactly. Select the repeat size that matches your screen inventory and target design categories for maximum screen utilisation.
Available in three printing widths — 1280, 1620, and 1850 mm — with higher widths available on request. Choose the print width that matches your fabric width and market requirements, with the same servo drive architecture across all width configurations.
Suitable for both woven and knitted fabric constructions with appropriate attachments — making the Climax a single-platform solution for producers working across multiple fabric types and end-use markets.
The Climax offers two distinct squeegee printing systems — each optimised for a different set of print quality priorities. Select the system that matches your design requirements, fabric type, and target market.
The magnetic squeegee system uses magnetic force to maintain constant, even squeegee pressure across the full screen width — ensuring deep, consistent ink penetration into the fabric structure for rich colour saturation and high colour depth.
The pneumatic squeegee blade system uses air pressure to maintain precise, consistent blade contact — delivering maximum print sharpness, fine line definition, and clean edge reproduction on complex, detailed designs.
Every technology choice in the Climax — from individual planetary-gearbox servo heads to the configurable squeegee system — serves a single purpose: delivering the highest possible print quality and registration accuracy at maximum production speed.
The Climax is Screenotex's most sophisticated rotary machine — full servo architecture, planetary gearbox heads, and dual squeegee system options represent the pinnacle of rotary screen printing automation.
Individual servo drives with planetary gearboxes on every head eliminate the mechanical register errors that compound across multi-colour designs — delivering registration accuracy that mechanical and single-drive systems cannot match.
80 m/min maximum speed with 24+ heads and servo blanket drive delivers the highest production throughput in the Screenotex rotary range — maximising output per shift on high-volume design runs.
Individual head servo control enables the Climax to hold registration on the most complex multi-colour designs — including fine outlines, tight colour adjacency, and critical repeat matching requirements.
The included brushing-cleaning unit removes all fabric surface contamination before the print zone — preventing screen clogging, ink smearing, and the costly reprints that follow contamination events at high speed.
The magnetic squeegee option delivers deep, even ink penetration across the full screen width — producing rich colour saturation and high colour depth particularly suited to heavy or absorbent fabric constructions.
The pneumatic squeegee blade delivers the highest print sharpness — clean, crisp colour edges and fine line definition on detailed designs where edge quality is the primary quality criterion.
Servo systems with no mechanical wear linkages between heads dramatically reduce maintenance frequency and spare parts consumption — translating directly into higher effective production hours per shift.
Individual servo drives on every head run only at the speed and torque the print requires — consuming significantly less energy than continuously running mechanical drive trains, reducing operational cost per metre.
Key technical parameters for the Screenotex Climax rotary screen printing machine. Contact our engineering team for configuration-specific details.
| Max Speed | 80 Metres / Min | Rotary Heads | 24+ (Configurable Higher) |
|---|---|---|---|
| Blanket Drive | Servo Driven | Head Drive | Individual Servo + Planetary Gearbox |
| Repeat Sizes | 640 / 820 / 914 / 1018 mm | Printing Widths | 1280 / 1620 / 1850 mm (Higher on Request) |
| Squeegee System | Magnetic or Pneumatic Blade (Configurable) | Color Feeding | Pneumatically Operated Pumps |
| Brushing Unit | Included as Standard | Fabric Compatibility | Woven & Knitted (with Suitable Attachments) |
| Model Classification | Flagship — Advanced Automation |
